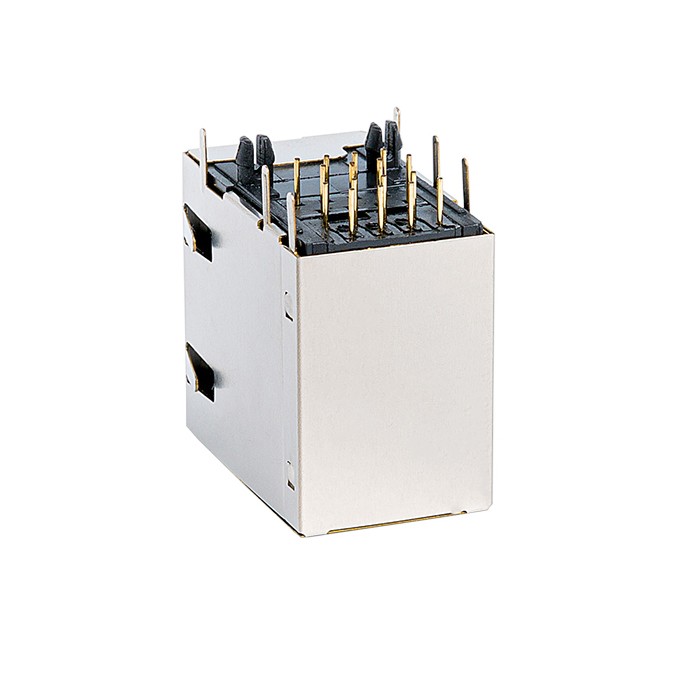

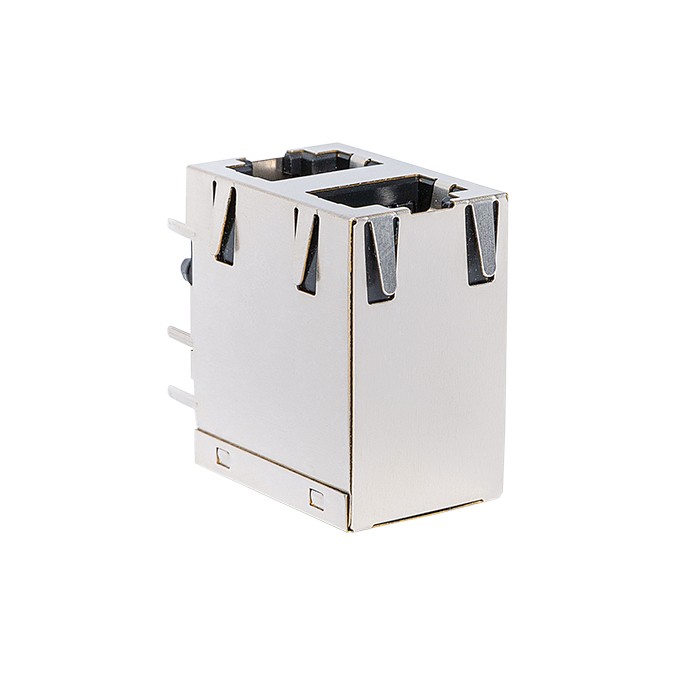

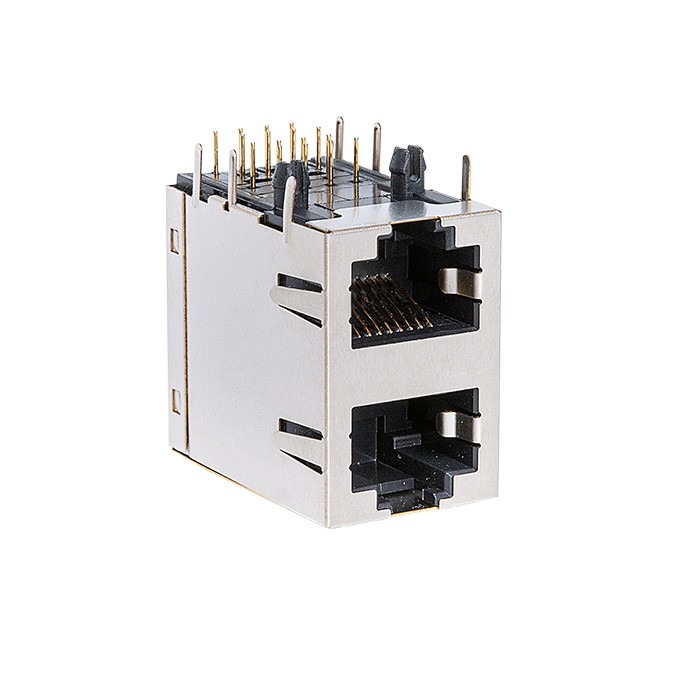

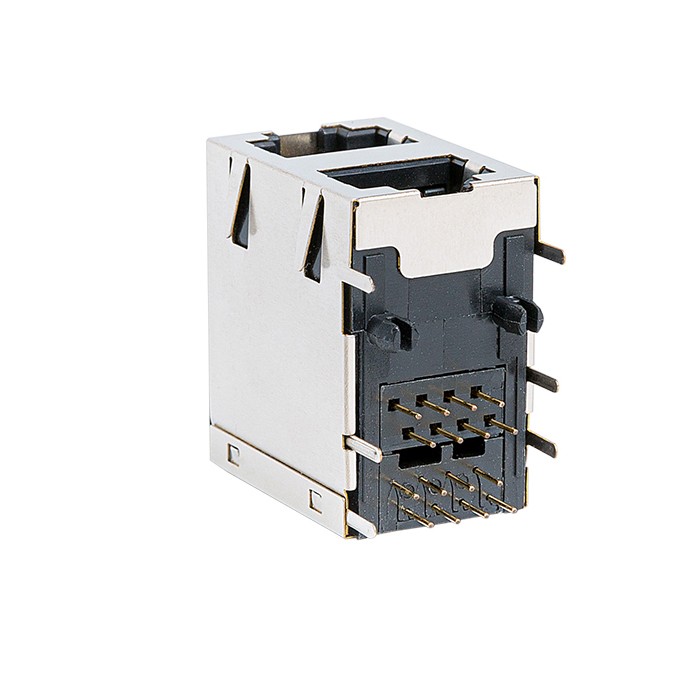

2*1 double-layer RJ45 network connector

Integrated transformer: 10/100/1000M Base-T/TX

Main electrical parameters: 350um Minimum OCL with 8mA bias

Contact area plating: Gold 6/15/30/50 Microinch

Working environment: 0 - 85 degree Celsius or -40 - 85 degree Celsius.

Description

Electrical performance:
1. Rated current: 1.5AM PS
2. Rated voltage: 125VAC
3. Insulation resistance: >500MΩ
4. Withstand voltage: AC1000V 50HZ or 60HZ for one minute
5. Contact resistance: <20MΩ
Mechanical performance:
1. Insertion force: 2 gold wires = 350g/4 gold wires = 500g/6 gold wires = 750g/8 gold wires = 900g/10 gold wires = 1050g
2. Matching strength: 7.7Kg between plug and socket
3. Service life: >750 plugging and unplugging
Material:
1. Plastic shell: ABS RESIN (UL994V-0) / PBT (UL94V-0) / PA46 (UL94V-0) / PA66 (UL94V-0) / LCP (UL94V-0)
2. Gold-plated wire: 0.45mm diameter phosphor copper wire, nickel-plated and then gold-plated / 0.35 thick phosphor copper sheet, nickel-plated and then gold-plated
3. Shielding shell: 0.2-0.25mm thick copper alloy surface nickel-plated
4. Optional gold-plated layer thickness: 1u inch / 3u inch / 6u inch / 15u inch / 30u inch / 50u inch
5. Working environment temperature: -40℃—70℃
